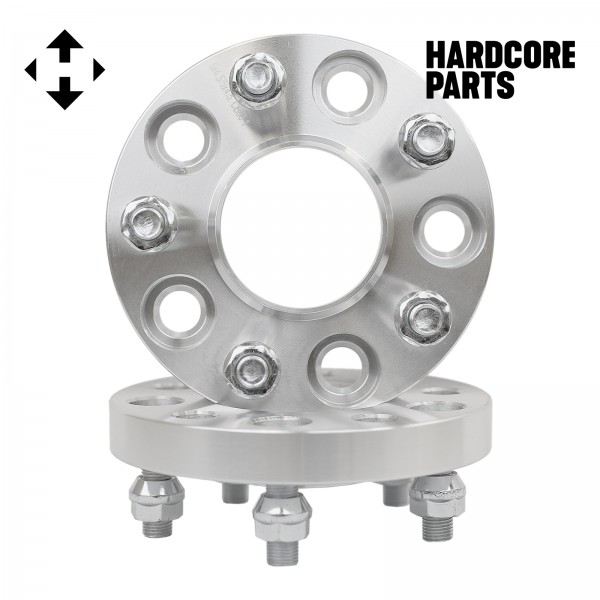

2 QTY 20MM 5x4.75 to 5x4.5 Hub Centric Wheel Spacer Adapters Hub Bore 72.56 / Wheel Bore 60.1 Thread 12x1.5

Quick Overview

You are buying a set of 2 HUBCENTRIC automotive wheel adapters (and spacers), These spacers are 20mm thick (one spacer in the kit for each wheel on the vehicle and this comes with lug nuts). The 20mm wheel spacers/adapter will fit most any vehicle with a 5 x 4.75 wheel stud pattern, M12x1.5 studs and a 72.56mm Center Bore where you are trying to use 5x4.5 WHEELS


These Adapters are compatible to BMW 72.56mm Hub Bore and have a Lip of 60.1mm to fit any wheels safely with the correct hub-centric ring.


Please measure your studs (4.75" diagonally two studs apart) first to be sure on your vehicle, then measure your wheels (4.5" diagonally two holes apart) to ensure they will fit.  The grid attached has many of the applications of the 5x4.75 bolt pattern, but remember to check your wheels to as this is a conversion kit, not just a spacer.  Please look for your vehicle!



  • Highlights of fitment (FOR THE VEHICLE - WHEELS NEED TO BE 5X4.5"):   many BMW models.See grid below, and some above for make and years, but please just measure your vehicle on both studs and spacer size



  • Compatibility




    • 1 Series (E82, E88) - 128i, 135i, M1, 1M Coupe

    • 3 Series (E30) - M3

    • 3 Series (E36) - 318i, 318is, 318ti, 325i, 325is, 328i, 328is, M3

    • 3 Series (E46) - 323ci, 323i, 325ci, 325i, 325xi, 328ci, 328i, 330ci, 330i, 330xi, M3

    • 3 Series (E90, E91, E92, E93) - 325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335is, 335xi, M3

    • 5 Series (E28, E34) - 525i, 528e, 530i, 535i, 535is, 540i, M5

    • 5 Series (E60, E61) - 525i, 525xi, 528i, 530i, 530xi, 535i, 535xi, 545i, 550i, M5

    • 5 Series (F07, F10) - 528i, 535i, 550i (uses 14x1.25mm lug bolts)

    • 6 Series (E24, E63, E64) - 633i, 635i, 645ci, 650i, M6

    • 6 Series (F12) - 650i (uses 14x1.25mm lug bolts)

    • 7 Series (E23, E32, E38) - 730i, 730il, 733i, 735i, 735il, 740i, 740il, 750i, 750il

    • 7 Series (E65) - 745i, 745li, 750i, 750li, 760i, 760li (uses 14x1.5mm lug bolts)

    • 7 Series (F01, F02) - 740i, 740li, 750i, 750li, 760li (uses 14x1.25mm lug bolts)

    • 8 Series (E31) - 840ci, 840i, 850ci, 850i




  • Other BMWs


    • 2004-2010 X3 (E83) (uses 14x1.5mm lug bolts)

    • 2011-2012 X3 (F25) (uses 14x1.25mm lug bolts)

    • 2000-2006 X5 (E53) (uses 14x1.5mm lug bolts)

    • 2007-2011 X6 (X70) (uses 14x1.25mm Lug Bolts)

    • 1996-2002 Z3 (Typ RC)

    • 1998-2002 M-Coupe/Roadster (Typ MRC)

    • 2003-2009 Z4 (E85, E89)

    • 2006-2008 Z4 M Coupe/Roadster (M85)

    • 2000-2003 Z8 (E52)





  • You are receiving 2 pieces/rings with a hole pattern of 5x4.75 or 5x120.7mm but a STUD PATTERN OF 5x4.5 or 5x114.3mm.  These are adapters and spacers, so they change the pattern of studs.

  • Studs are M12x1.5 and there is a 72.56mm hub center bore and a 60.1mm wheel center bore.  If your lug nuts are different for your wheel, you could need to purchase new lugs.  Please check your stud thread pattern!

  • Thickness is 20mm per spacer for 40mm wheel to wheel!

  • You receive lug nuts (M12x1.5) as well.  5 per ring as expected.


Our wheel spacers are CNC machined to exact specification from the best quality aerospace aluminum available.  Each set is hand tested and commercially packed.


Installation should be professionally done.  Follow procedures outlined in the installation document carefully for safety.


Warranty:

We offer a lifetime warranty on all our products.  Most other sellers to NOT offer this.


Bar none, we are the number one seller of wheel spacers on eBay. Simply check our feedback and sales history, and you will see that the results clearly speak for themselves.



  • We provide a lifetime warranty

  • We guarantee YOUR satisfaction!

  • Thousands of clients are currently enjoying these spacers, and they are riding with confidence! Do not let other sellers confuse you with their listings, because they cannot compete with our price points. We manufacture thousands of sets of all types of spacers at a time with a proven design, which results in a great deal for YOU!

Availability: In stock

$64.96

FREE SHIPPING

On all orders over $99

MONEY BACK GUARANTEE

100% money back guarantee

PARTS EXPERTS 24/7

Email or Call: (704) 964-6839

LIVE CHAT

Instant communication

Description

Note: Hubcentric Rings are needed to fully funtion as Hubcentric Adapters.

BMW
• 1 Series (E82, E88)
• 3 Series (E30)
• 3 Series (E36)
• 3 Series (E46)
• 3 Series (E90, E91, E92, E93)
• 5 Series (E28, E34)
• 5 Series (E60, E61)
• 6 Series (E24, E63, E64)
• 7 Series (E23, E32, E38)
• 8 Series (E31)
• 1996-2002 Z3
• 1998-2002 M-Coupe/Roadster
• 2003-2009 Z4 (E85, E89)
• 2006-2008 Z4 M Coupe/Roadster
• 2000-2003 Z8

Additional
Brand Hardcore PartsĀ®
SKU 5x475-5x45AD-HUB-20MM-2QTY
Package Quantity 2
Wheel Bolt Pattern 5x4.5
Vehicle Bolt Pattern 5x4.75
Thickness 20 mm
Thread Pitch M12-1.5
Center Bore Size 72.56 mm
Hub Centric (Yes or No) Yes
Material Forged T6 6061 Aircraft Grade Aluminum
Surface Finish Color Chrome
Length (in) No
Width (in) No
Height (in) No
Placement on Vehicle No
OEM Part # No
